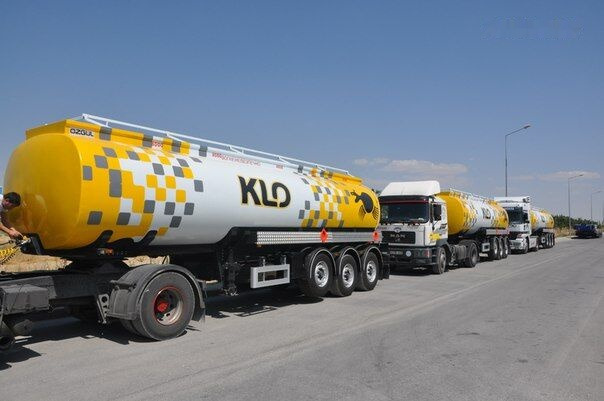

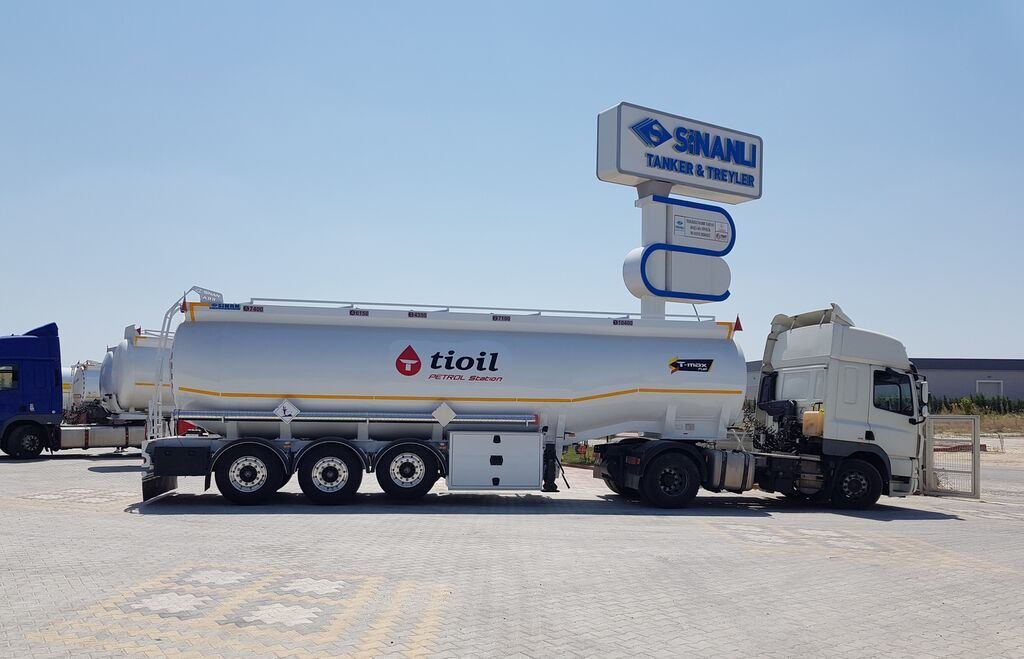

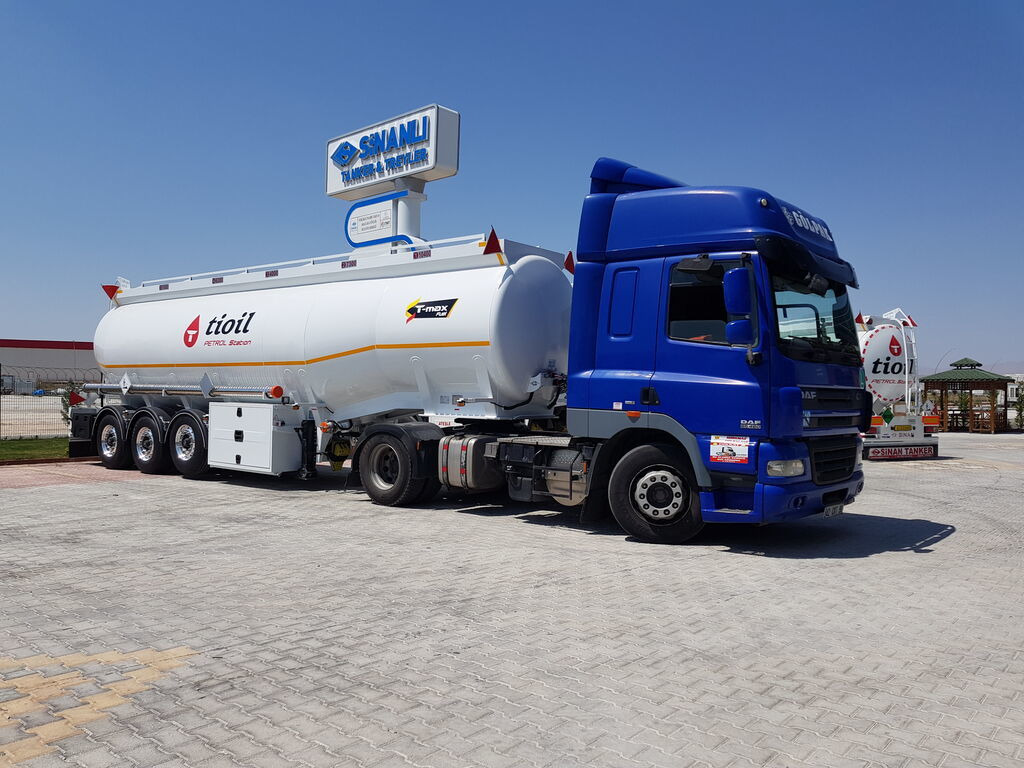

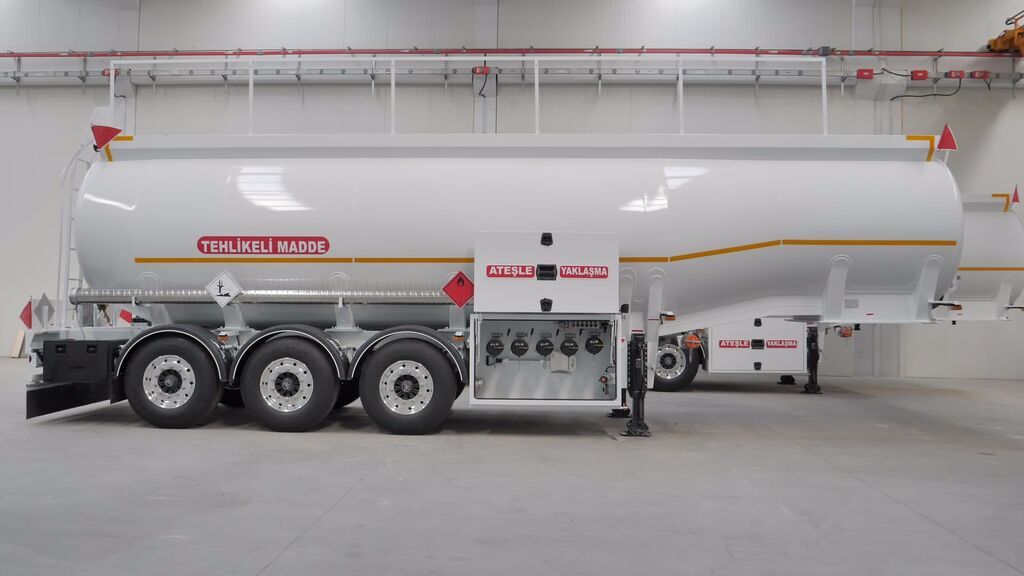

Nový Cisternový náves na prepravu palivo New STU 40.000 LT FUEL OIL TANKER

Fuel Tanker Semi Trailer Technical Specifications

Chassis and Structure:

- Tank Capacity 40..000 Lt

- 2 Compartments

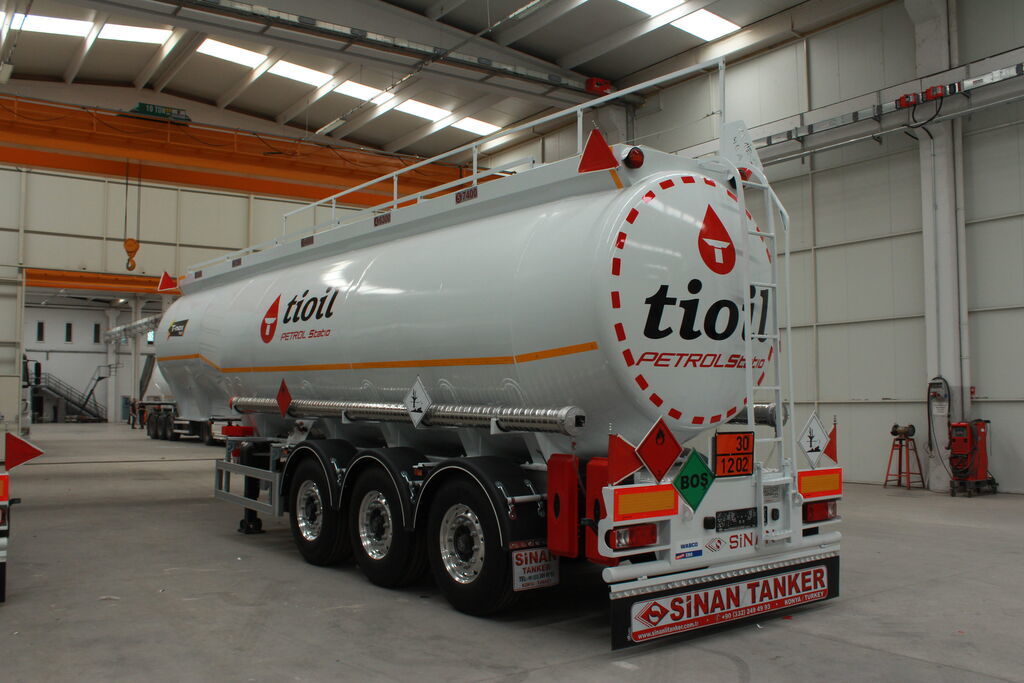

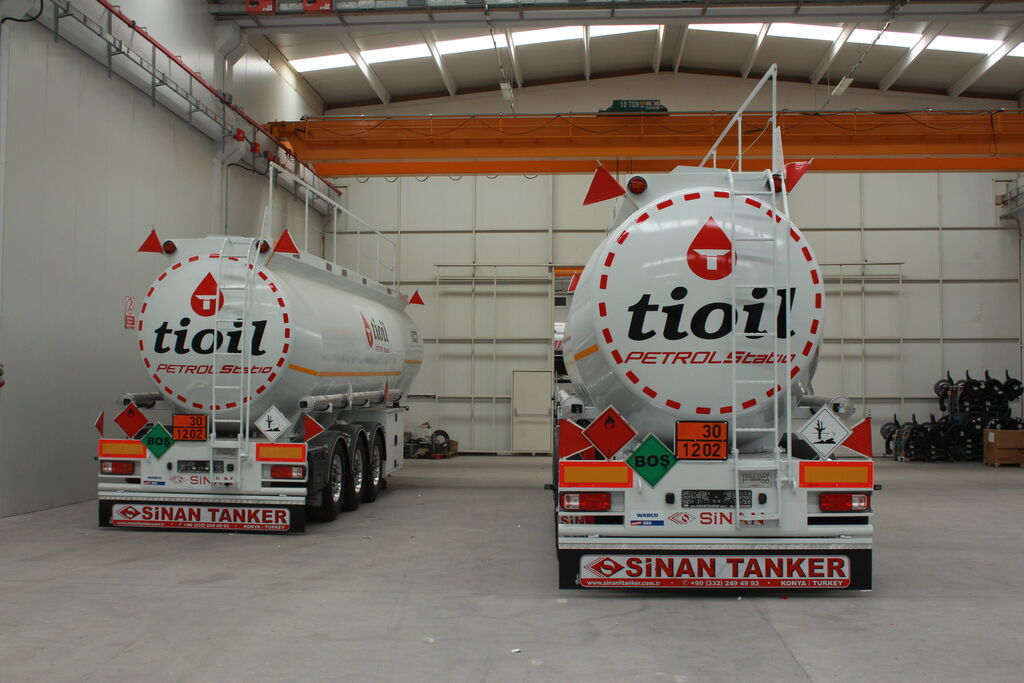

- Our tankers are monoblock chassis like the picture

- 4 mm ST Quality Steel plate is used on tanker body

Axles:

Axle configuration consist of 3 x 12 Tonnes Turkish Brand( BPW Copy) axle system

Air spring system wil be used for suspension

Timken Bearing will be used for Wheel hubs

First axle liftable

Brake Equipment:

Dual Line Air Brake System

Slack adjuster to be automatic

Brake Chambers sizes to be 24 x 30 and 30 ,

Air tanks to be 80 + 80 lt capacity

Distribution of air to be by plastic hoses 8 – 12 size ,

All fittings to be steel ( Brass ) one to prevent any leakage in brake system , ( Plastic fitting will cause air leakage in the system )

Electrical system:

Sa-Ba or Sertplas Brand

2x7 pin sockets - 24V, lights according to SAE standards

Rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted

2 tail & stop combined lamps (red)

2 turn signal combined lamps (orange)

1 license plate lamp (white)

Electrical system is suitable for Europen Norms and with flameproof cables

Tires: 385/65 R22,5 size 6 pcs of tires brand Petlas, Kelly, Finixx, Sava, Matador

Rims: 6 Pieces 22.5 JANTAS or JANTSA brand

King Pin:

- Certificated Turkish Brand Jost Type Steel king-pin which is 2 or 3,5” suitable for 6x4 tractor unit according to DIN 74080 standards and 3½” 42 CRMO4 according to DIN 74083 standards are used.

- Kin pin Height will be arrange according to your truck like 6x4 or mentioned truck etc.

Parking Legs:

Certificated Turkish brands Jost Type two speed

Telescopic, mechanical conveyor gear

Dynamic Lift Capacity: 25 Tones

Static Lift Capacity : 50 Tones

Low Gear Position : 0.98 mm / Rev

Painting:

After the construction process , Complete trailer will be sand blasted

Before the painting, all parts are cleaned carefully, Epoxy gray is used for first protecting primer coating as 50 micron. 2 Times of high quality paints applied on complete trailer

The color of trailer is selected by customer requested according to RAL codes……….

Painting thickness to be 100 micron , and all painting process to be submitted with certifications

Accossories:

- 1 plate unloading valve box

- 1 plate tool box

- 1 non-slip floor walking platform

- 1 ladder (climbed from behind)

- Plastic water tank

- Roller or basket spare tire conveyor

- Aluminum bike impact absorber

- Plastic Wheel chock
