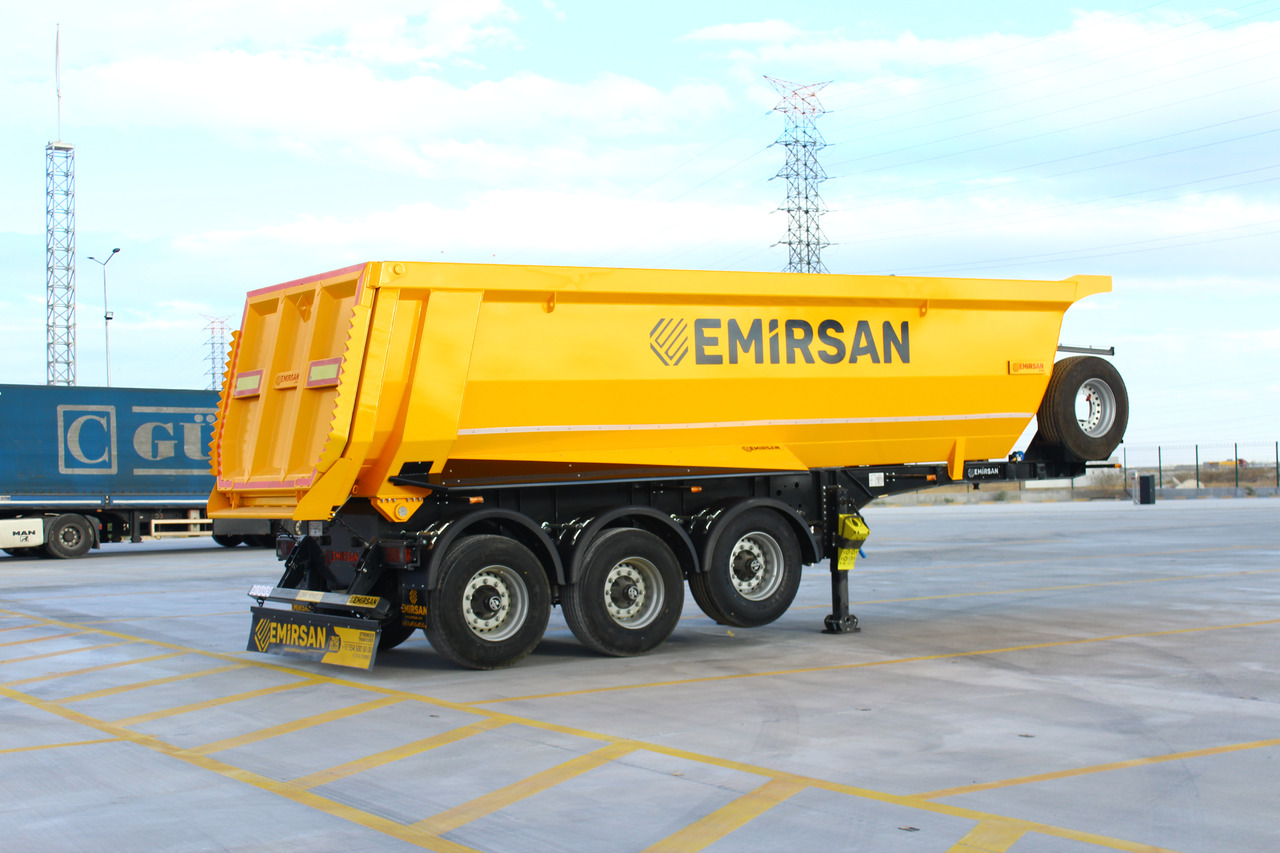

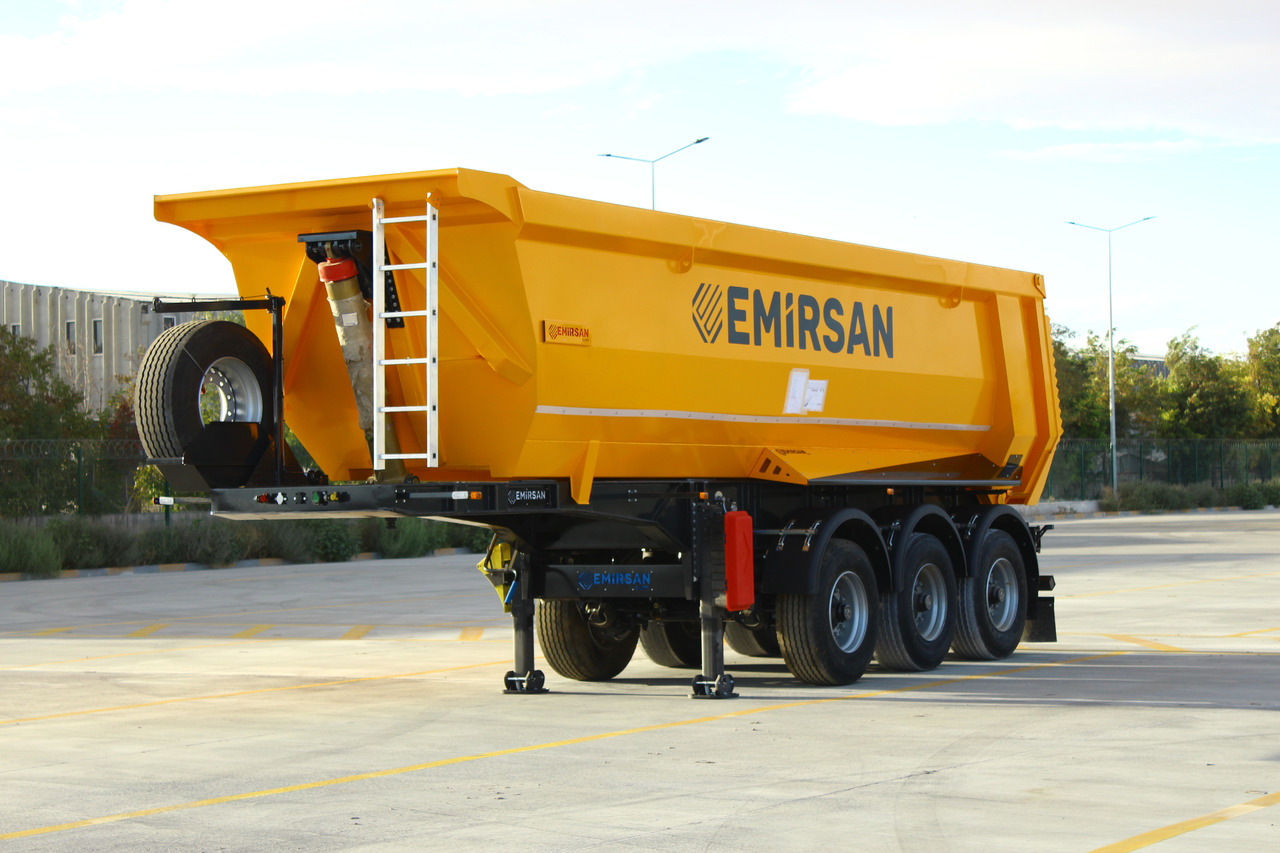

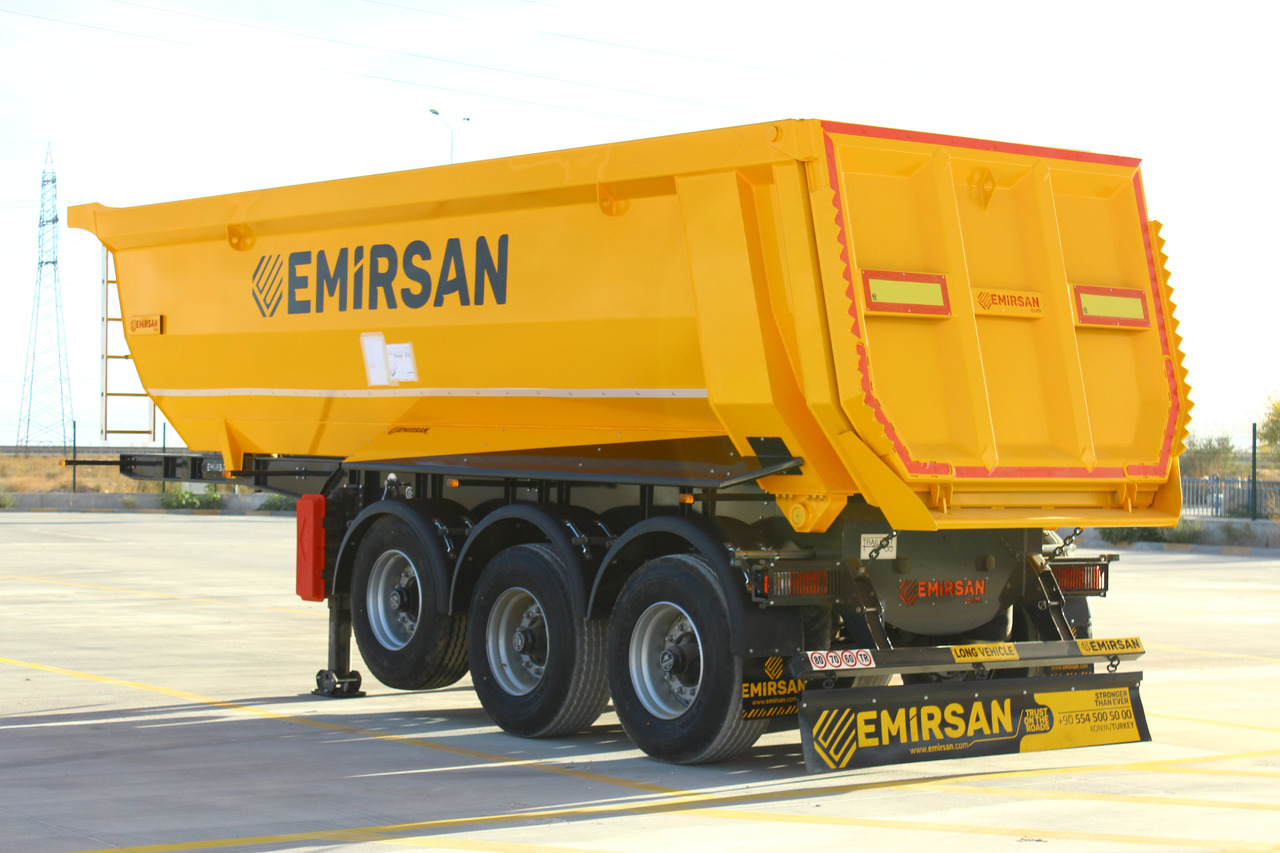

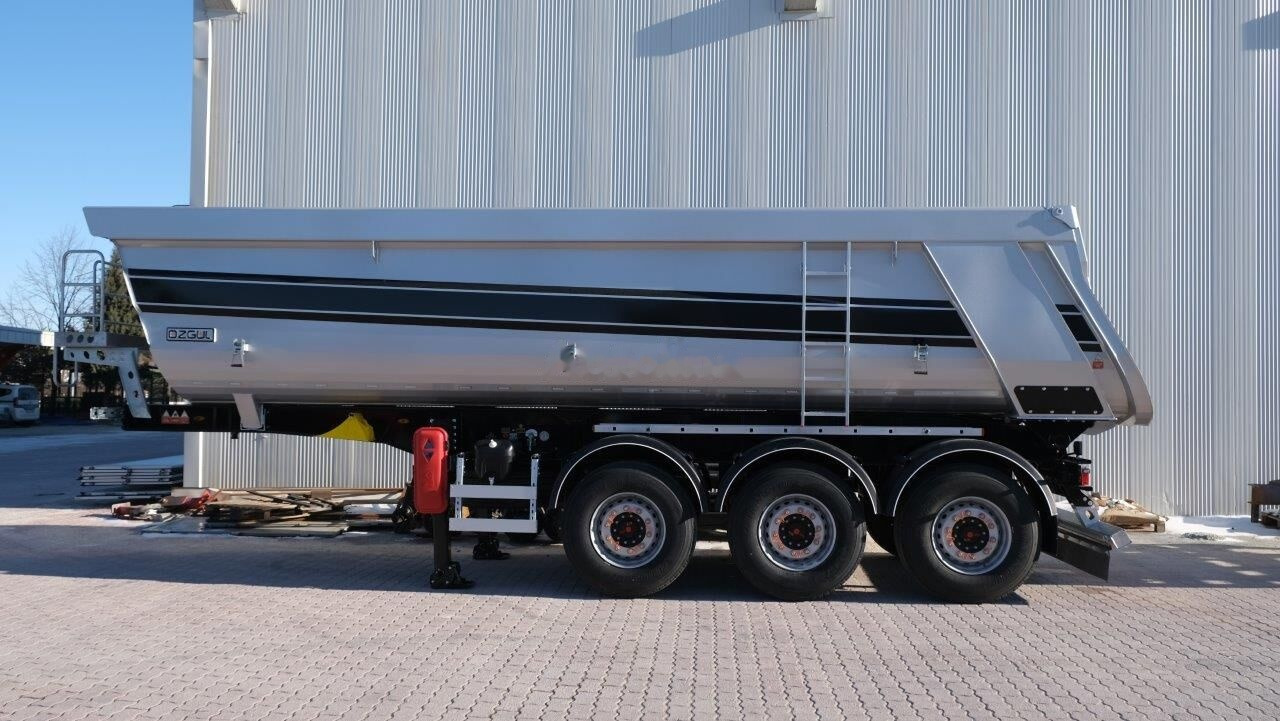

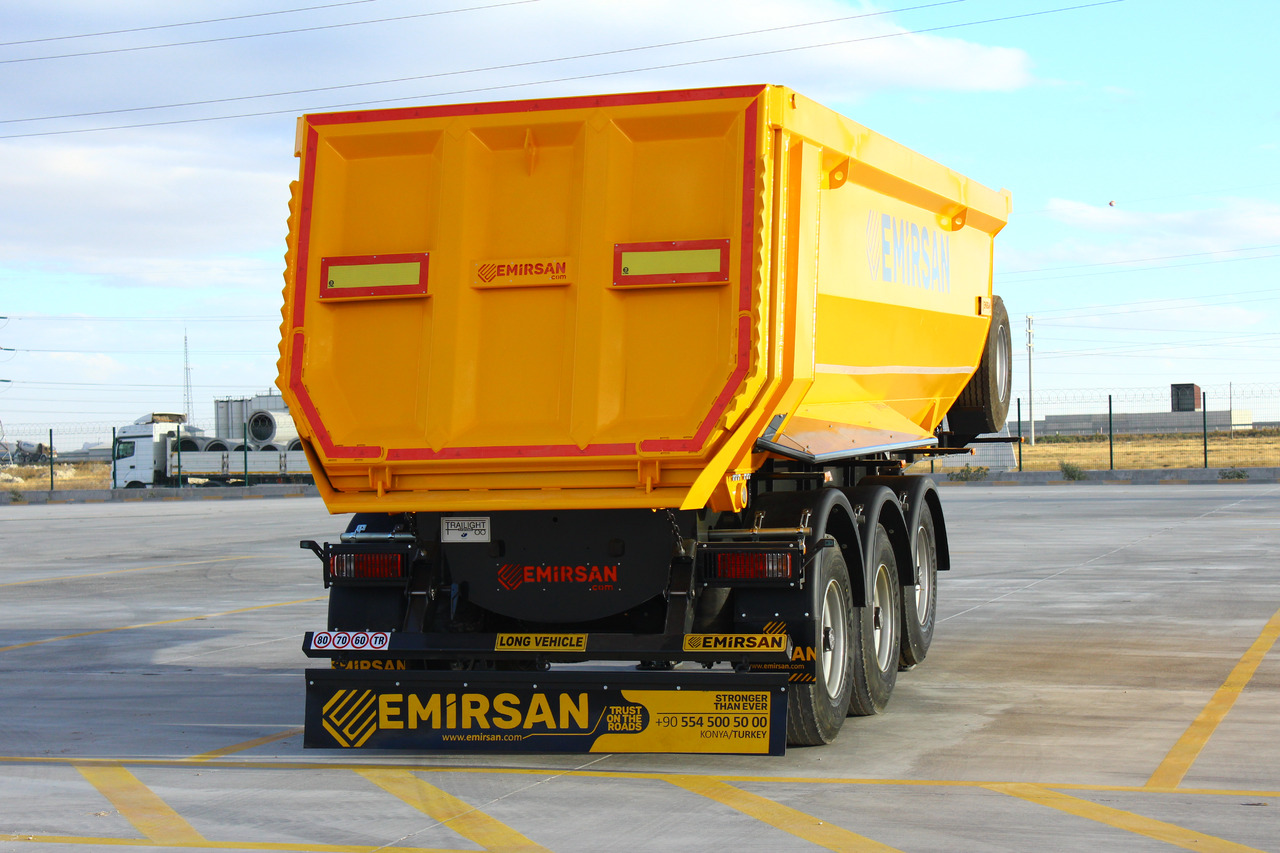

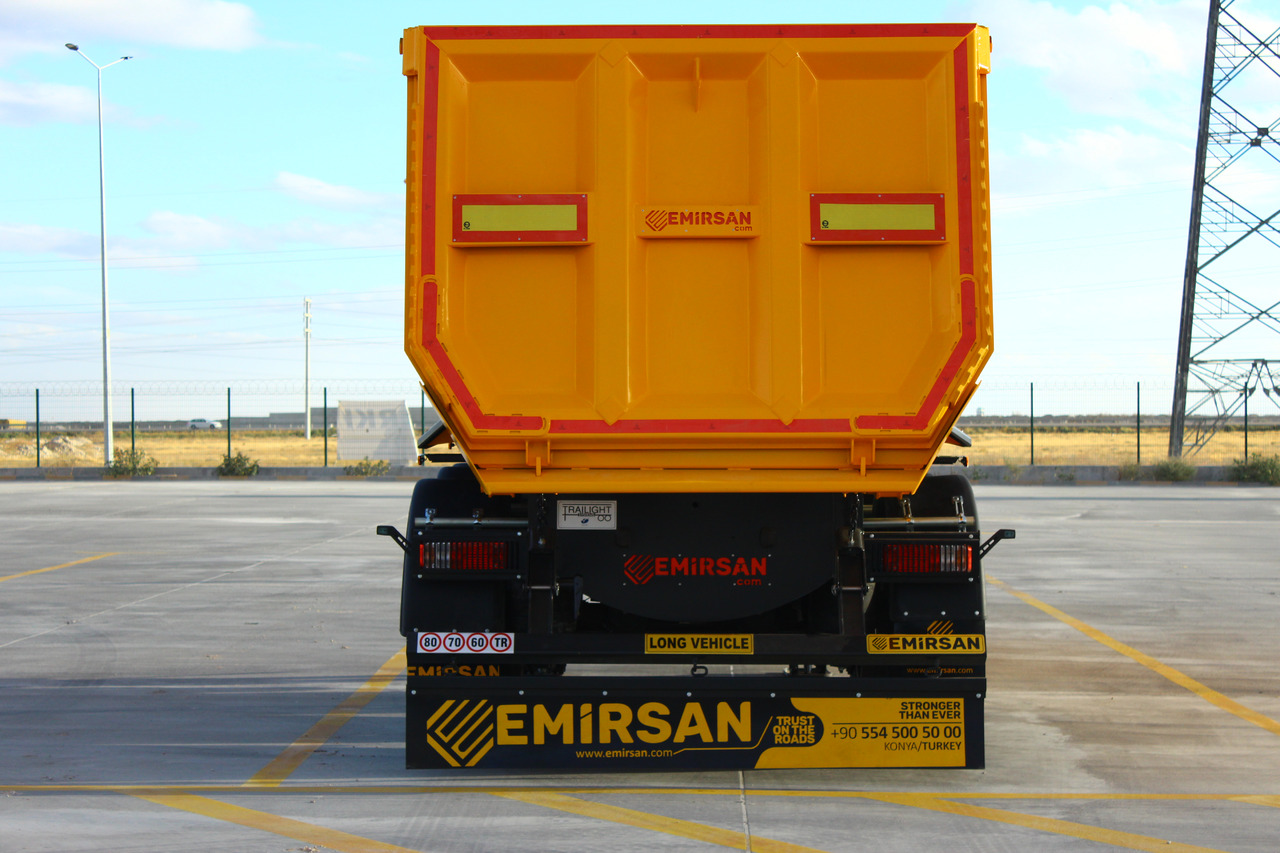

Nový Náves sklápěcí EMIRSAN Half Pipe Tipper Trailer

Full trailer frame

---

Structure; Volume: 22 Cbm to 34 cbm Tipper body is produced from Hardox HB 450, Raex HB 450, XR HB450 or ST52 .3 Steel plate. Side doors can be be 4, 5, 6 mm and bottom will be 4,5,6,8 mm thickness. Body includes strengthened rack on the bottom. There are plastic parts to prevent wearing and noise on the points that contact with chassis. Hydraulic: Tipper movement is provided by level 5 or 6 stages heavy telescopic cylinder brand certificated HYVA type Hidromas brand Turkish origin which provides 45 degree tilt angle. Oil tank will be added to trailer, hydraulic contact between trailer and conveyor, is provided by 2 sockets Chassis: Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 120/14 or 120/12 mm bottom or top steel plate and 5,6 or 8 mm main plate for standard models. These racks are supported against being twisted with each other by binding them with axle beams Axles: Turkish Brand, BPW or SAF 9,12,14,16 Ton axles brake drum or disc There are brake shoes and heavy brake levers suitable for TSE norms air-suspension-axle-setmechanical-suspension-axle-setbogie-suspension-axle-set Suspensions ; It is supplied with Turkish brand of 6 pcs of air cushion with Z leaf spring or mechanical leaf spring suspension with 12 mm x12 pcs of layer with 100 mm width or heavy duty bogie type suspension Brake System ; Wabco, Haldex, Knorr brand ABS or EBS braking system or Turkish air brake system will be used. Brake Chambers ; 1 or 2 Axles with T 30/30 emergency brake chamber,2 axles with T 30 service brake chambers Electrical system ; Hella, Aspöck, Sa-Ba or Sertplas brand 2×7 pin sockets – 24V, lights accord to standard in SAE rear stop lamps, side marker lamps, brake safety warning lamps and signal light fitted at the rear 2 tail & stop combined lamps (red) 2 turn signal combined lamps (orange) 1 license lamp (white) Tires; Different sizes supersingle or double tire Bridgestone, Pirelli, Goodyear, Sava, Kelly brand Rims; 22,5” size Jantsa-Jantas Brand King Pin ; Jost or equivelent Turkish brand DIN 74080 standards 2’’ or 3,5’’ king pin detachable from below made by SAE standards 8 bolt type. With E certificate. Landing Gear ; Jost or equivelent Turkish brand front Jack feet are telescopic,parallel working,double speed jointed with wide shoes static 50 tons, dynamic 25 tons capacity Painting ; Before the painting trailer is sand blasted ZincRich epoxy gray is used for first protecting. 1-2 Times of high quality paints are applied on trailer protects against humadity The color of trailer is selected by our customer according to RAL codes Accossories; Multi-piece plastic fenders that covers back axle shaft tires 1 plate tool box Control Panel(Mob, air clock, access ramp lever) Plastic water tank Spare tire conveyor between trailer legs Mounting and mounting space Manual tent cover Automatic electrical tent cover
